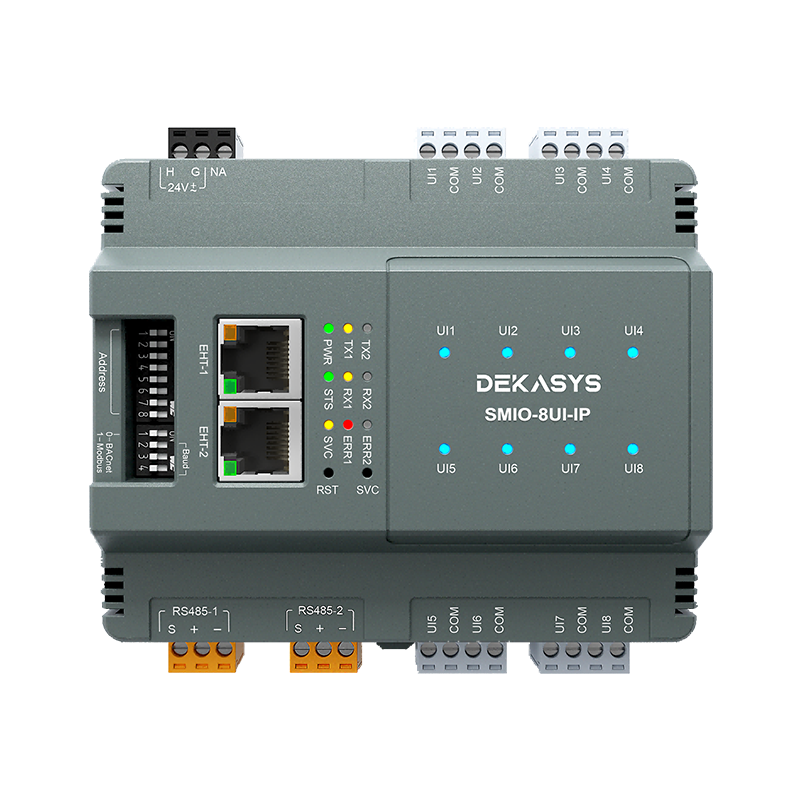

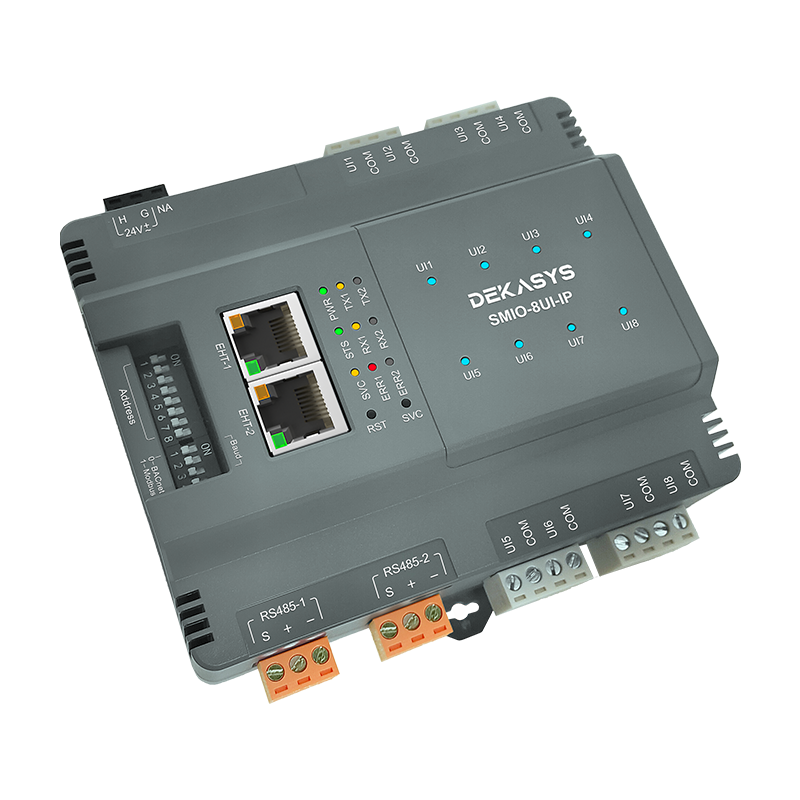

DEKASYS 8-point Remote IO module SMIO-8UI-IP
|
RS485*2 |
UI*8 |
2 Ethernet port for daisy chain connection |
|
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Supported Protocols
The controller can communicate using common industry protocols such as BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP, making it suitable for most Building Automation applications.
Firmware Updates
The controller can be upgraded and configured via USB.
Physical Configuration
The address and baud rate of the controller can be easily set using a DIP switch, ensuring a quick and hassle-free initial setup.
|
Electrical |
|
|
Dimension |
131.4x107.1x51.7mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power |
24VAC 50/60Hz +20%/-15%, or 24VDC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temperature |
0°C to 55°C (32° to 131°F) |
|
Storage Temperature |
-20°C to 85°C (-4° to 185°F) |
|
Operating Humidity |
0% to 95% Relative Humidity, Non-condensing |
|
IP Waterproof |
IP20 |
|
12-bits with PGA |
|
|
Universal Input |
8 Channels, 12-Bit ADC (with PGA) |
|
Voltage |
0 – 10V (±0.01V), 0 – 5V (±0.01V) |
|
Input/Output – SMIO-08P-8UI |
|
|
Current |
4 – 20mA (±0.01mA), 0 – 20mA (±0.01mA) |
|
Resistance |
0~30K (±10 Ohm), 0~10K (±5 Ohm), 0~1.5K (±1 Ohm) |
|
Thermister Sensor |
NTC 10K Type 2/3, 3K, 20K (±0.1⁰C) |
|
Certifications |
CE, FCC, BTL |
-
Simplified Deployment
DEKASYS IO modules are designed with simplicity in mind, offering plug-and-play functionality and quick installation. Their standardized interfaces and pre-programmed settings make integrating with other devices straightforward, even for those without specialized knowledge. This reduces the time and cost associated with deployment.
-
Versatile Connectivity
DEKASYS IO systems are built to be modular and are compatible with multiple industrial protocols such as BACnet, Modbus, and MQTT. This versatility allows for seamless integration with a wide array of equipment and systems, making them a perfect fit for customers across various industries and their differing needs.
-
Unlimited Expansion
DEKASYS IO modules are designed with scalability in focus, allowing for flexible expansion and upgrades to align with the evolving needs of customers. They are capable of supporting everything from individual modules to large-scale systems and can adapt to both basic and complex applications. This makes DEKASYS a reliable partner for digital transformation projects, offering long-term adaptability and robust performance.
