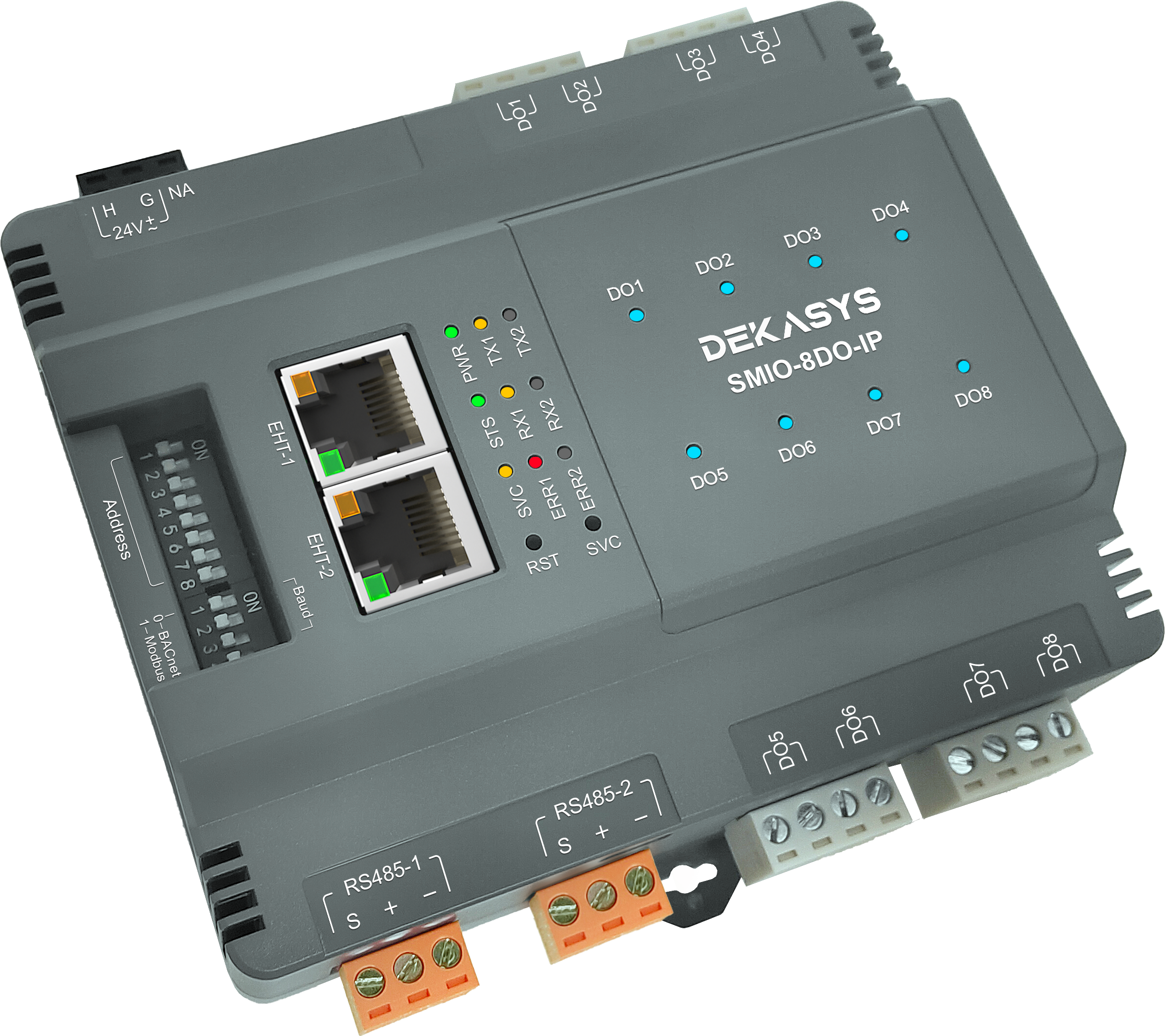

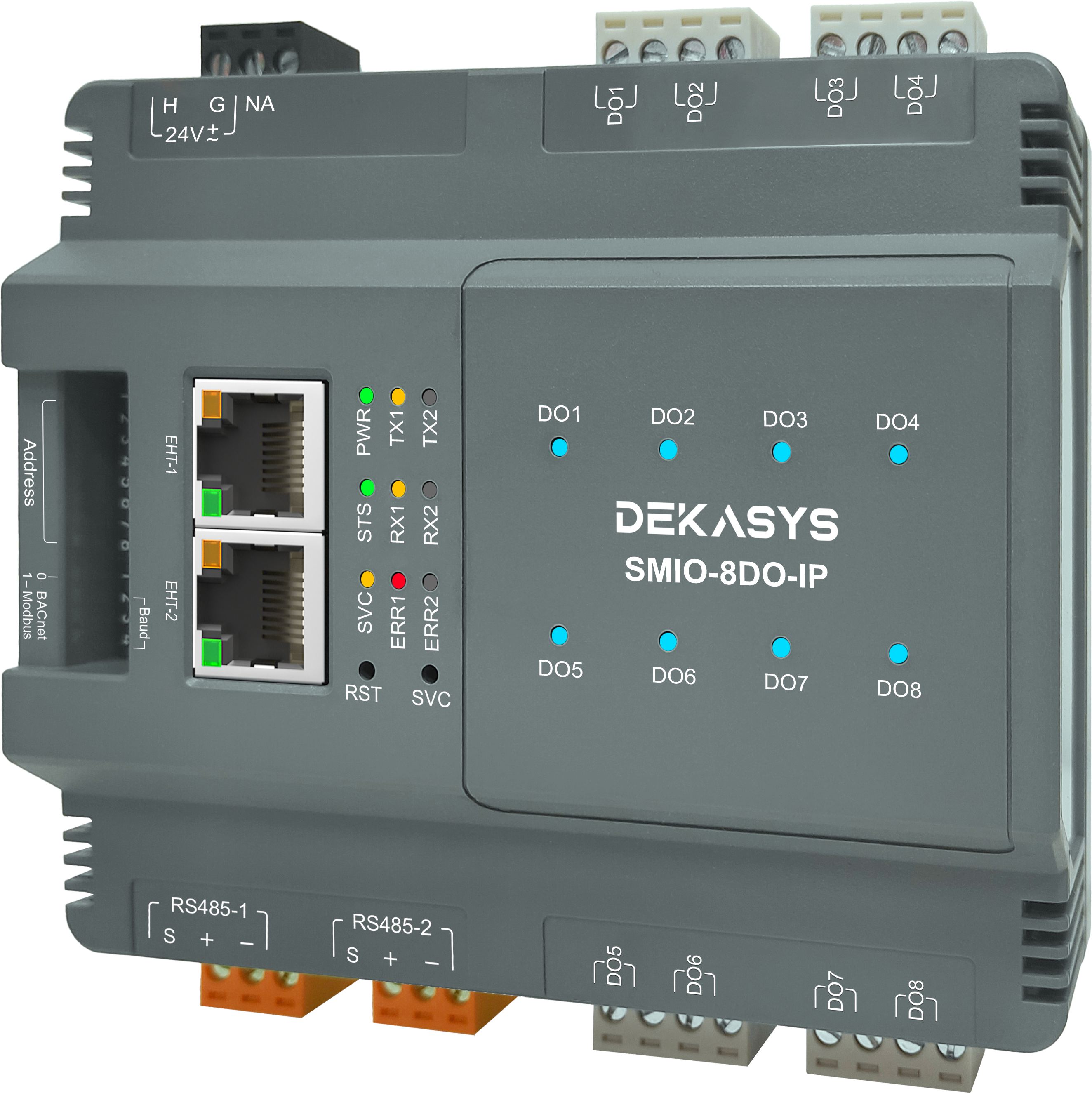

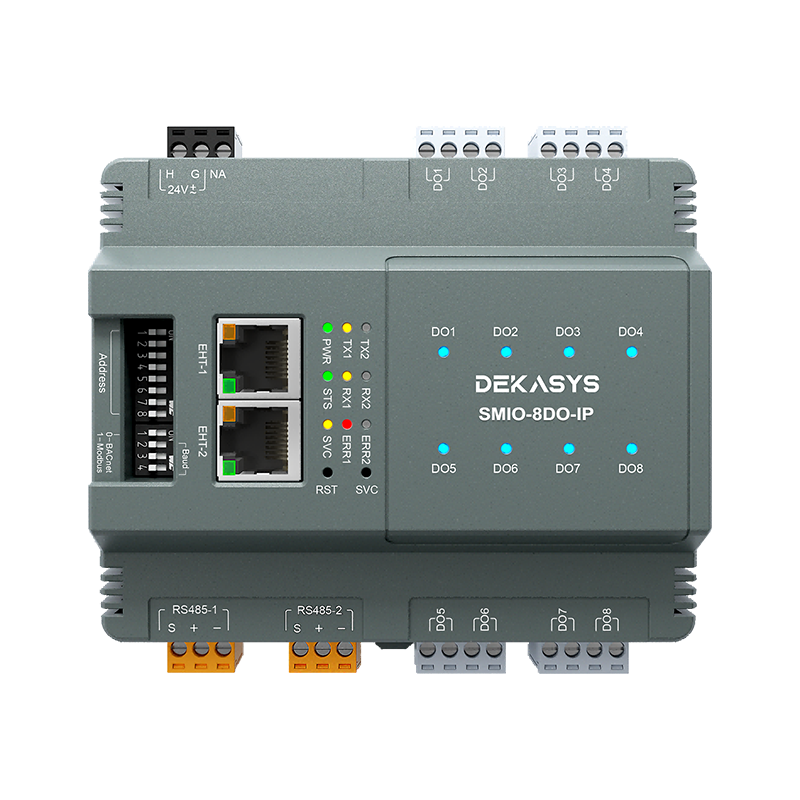

DEKASYS 8-point Remote IO module SMIO-8DO-IP
|
RS485*2 |
DO*8 |
2 Ethernet port for daisy chain connection |
|
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Standard Protocol Compatibility
The controller supports widely-used open communication protocols including BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP.
Online Firmware Upgrade Capability
The controller can be upgraded and configured through USB.
HOA Function for Digital Output
An optional HOA function is available for digital output, offering additional control flexibility.
DIP Switch Setup
The address and baud rate can be easily set using the DIP switch, facilitating a quick installation process and efficient system integration.
|
Dimension |
131.4x107.1x51.7mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp. |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Type |
Relay, SPST NO, 24VAC/DC, 0.5A |
|
Certifications |
CE, FCC, BTL |
DEKASYSDigital Output
✔ For digital signal, there are only two states, ON or OFF.
✔ When the digital signal is OFF, the RGB LED will be OFF too, when the digital signal is ON, the RGB LED will light on Blue.
Type Of IO |
Configuration |
Colour |
Digital Output |
ON, OFF |
Blue, Off |
DEKASYSDigital Output Manual Override(HOA)
With Digital Output HOA function, user can manually override the current output state using the slide switch.
Slide Switch Position |
Function |
Description |
Left |
Hand/H |
Digital Output is On/ Relay activated |
Middle |
Off/O |
Digital Output is Off/Relay deactivated |
Right |
Auto/A |
Digital Output is controlled by network command |
