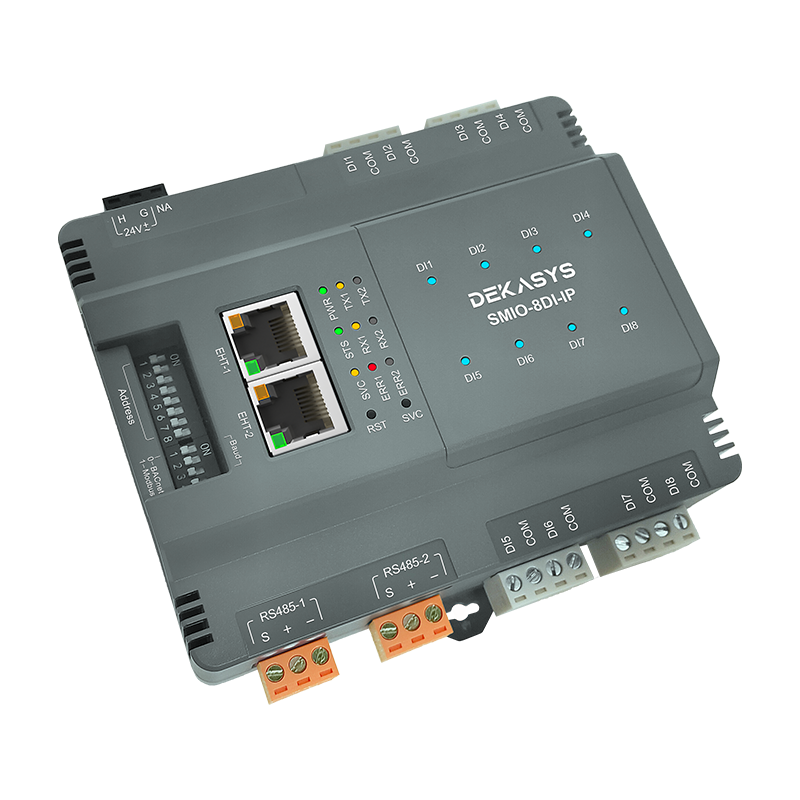

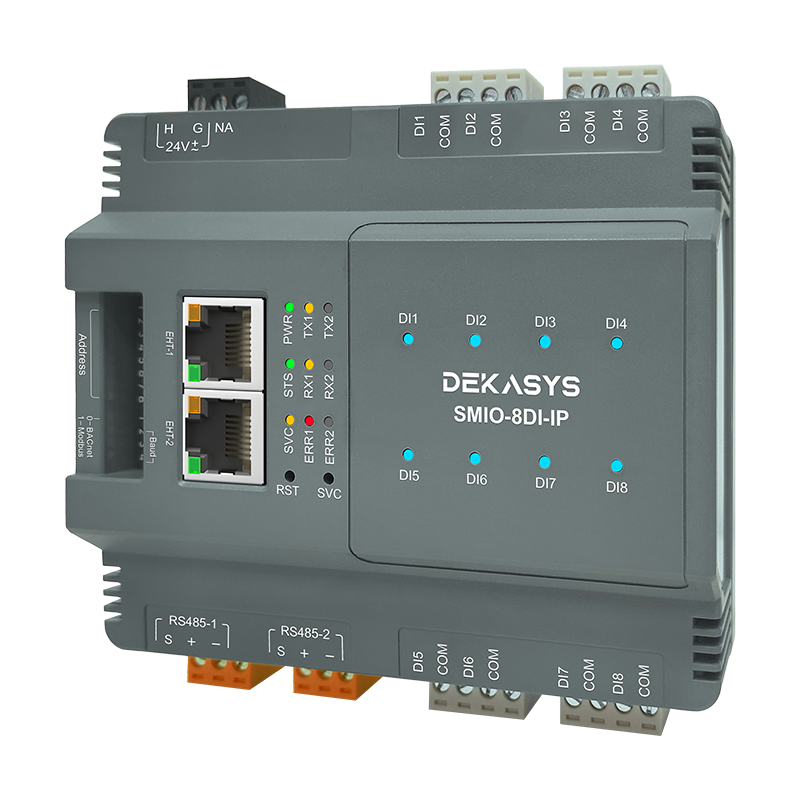

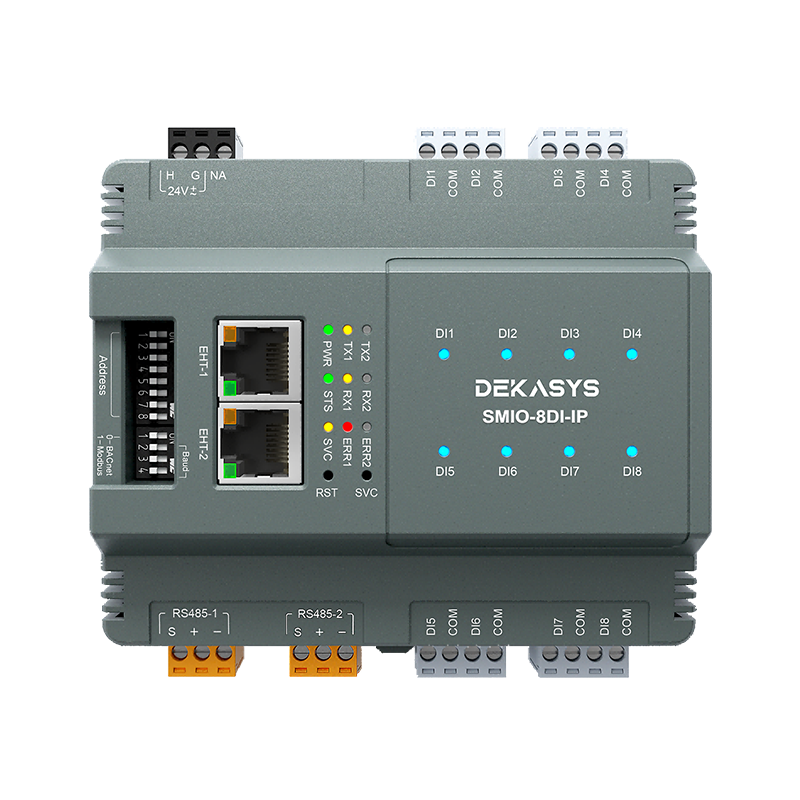

DEKASYS 8-point Remote IO module SMIO-8DI-IP
|
RS485*2 |
DI*8 |
2 Ethernet port for daisy chain connection |
|
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Standard Building Automation Protocol
The controller supports both BACnet MS/TP, BACnet IP, Modbus RTU and Modbus TCP open communication protocols, which are able to accommodate most of the Building Automation application.
Online Firmware Upgradable/Configurable
The controller can be upgraded and configured via USB.
Hardware DIP switch Settings
The address and baud rate can be set using the DIP switch for fast and convenient setup.
|
Dimension |
131.4x107.1x51.7mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Limit |
ON State < 2000Ω，OFF State > 20000Ω |
|
Type |
Dry Contact，Isolated 3.7KV |
|
Certifications |
CE, FCC, BTL |
-
Simplicity & Efficiency
SMIO modules are designed for straightforward installation and operation. Their standardized interfaces and preset functions simplify device connections, enabling quick deployment even by non-specialists, which significantly cuts deployment time and costs.
-
Flexible Adaptation
With a modular design and support for major industrial protocols like BACnet and Modbus, SMIO modules seamlessly integrate with diverse systems and equipment, perfectly adapting to meet varied customer requirements.
-
Scalability & Future-Readiness
SMIO modules are highly scalable, allowing flexible combinations and upgrades to suit customer needs. They handle everything from single modules to large-scale systems, supporting enterprise digital transformation.
-
Reliable Performance
SMIO modules ensure stable operation in harsh industrial environments, with robust construction and reliable signal transmission for precise control and monitoring.
