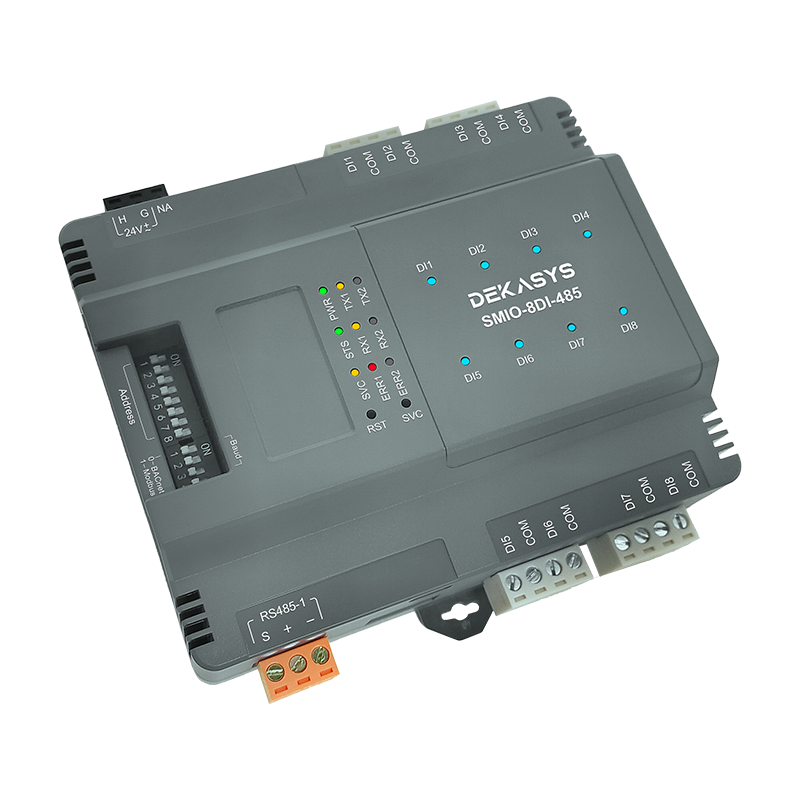

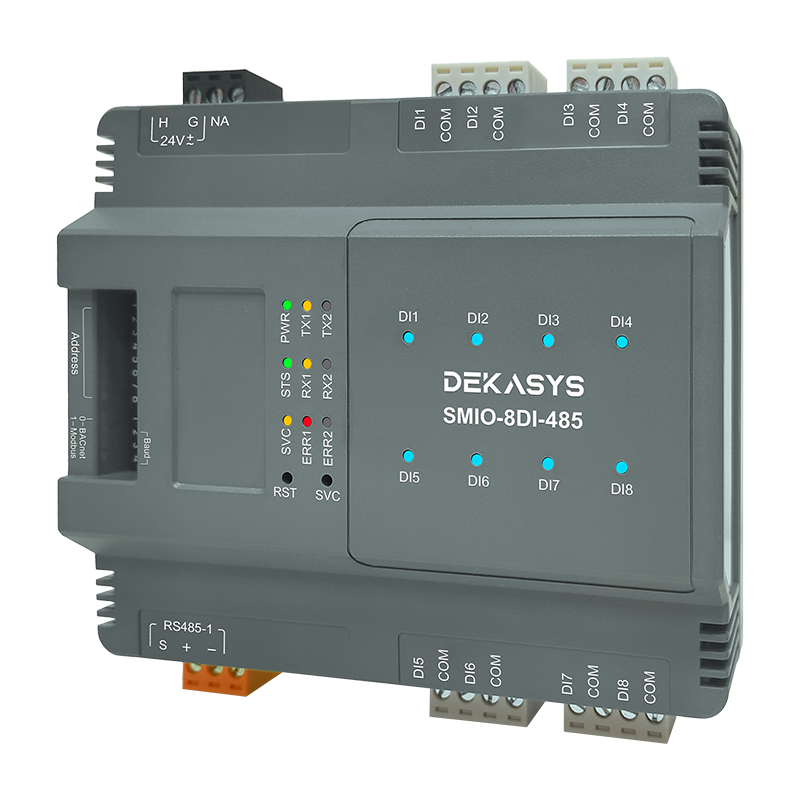

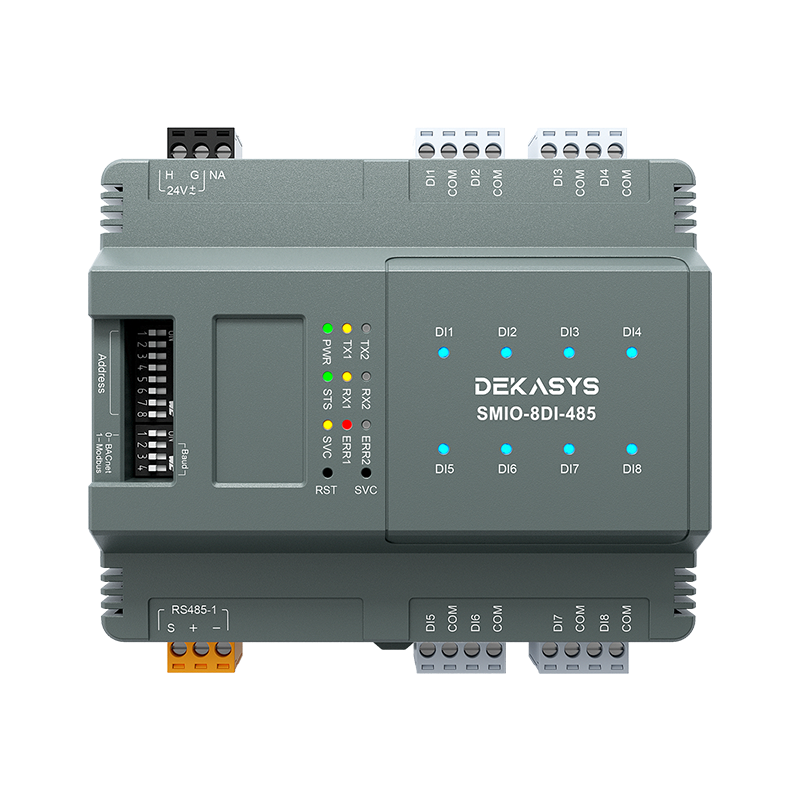

DEKASYS 8-point Remote IO module SMIO-8DI-485
Standard Building Automation Protocol
The controller supports BACnet MS/TP and BACnet IP protocols, which are widely used in building automation for HVAC, lighting, and security systems。It also supports Modbus RTU and Modbus TCP, ensuring compatibility with a broad range of devices and applications.
Online Firmware Upgradable/Configurable
The controller can upgrade the firmware or configure it via USB ,there by achieving seamless updates and enhanced functions.
Hardware DIP switch Settings
The address and baud rate can be set using the DIP switch for fast and convenient setup。This feature simplifies initial configuration and ensures quick deployment.
|
Dimension |
131.4x107.1x51.7mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Limit |
ON State < 2000Ω，OFF State > 20000Ω |
|
Type |
Dry Contact，Isolated 3.7KV |
|
Certifications |
CE, FCC, BTL |
-
Simple and efficient, plug and play
DEKASYS IO module is simple, easy - to - operate, and supports quick installation and configuration. Standardized interfaces and preset functions simplify device connections. Non - professionals can quickly start, reducing deployment time and cost.
-
Flexible adaptation, seamless connection
DEKASYS IO systems are modular and support various industrial protocols (BACnet, Modbus, MQTT, etc.), ensuring seamless connectivity with diverse equipment and systems, and catering to different customer needs.
-
Expand indefinitely and face the future
DEKASYS IO modules are highly scalable and can be flexibly combined and upgraded according to customer needs. They can handle single modules, large - scale systems, simple applications, and complex scenarios, continuously supporting enterprises' digital transformation.
