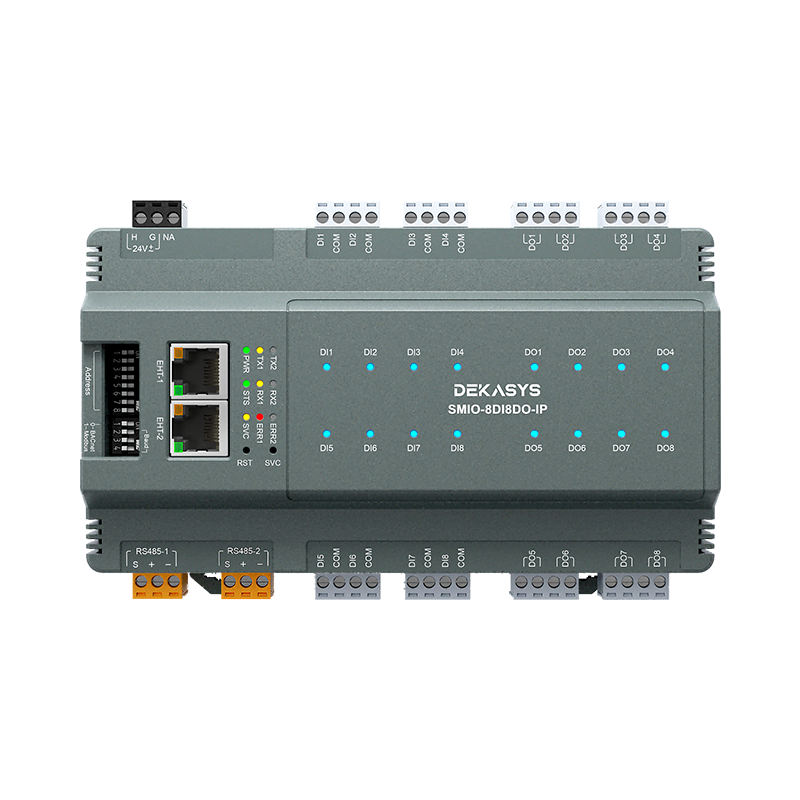

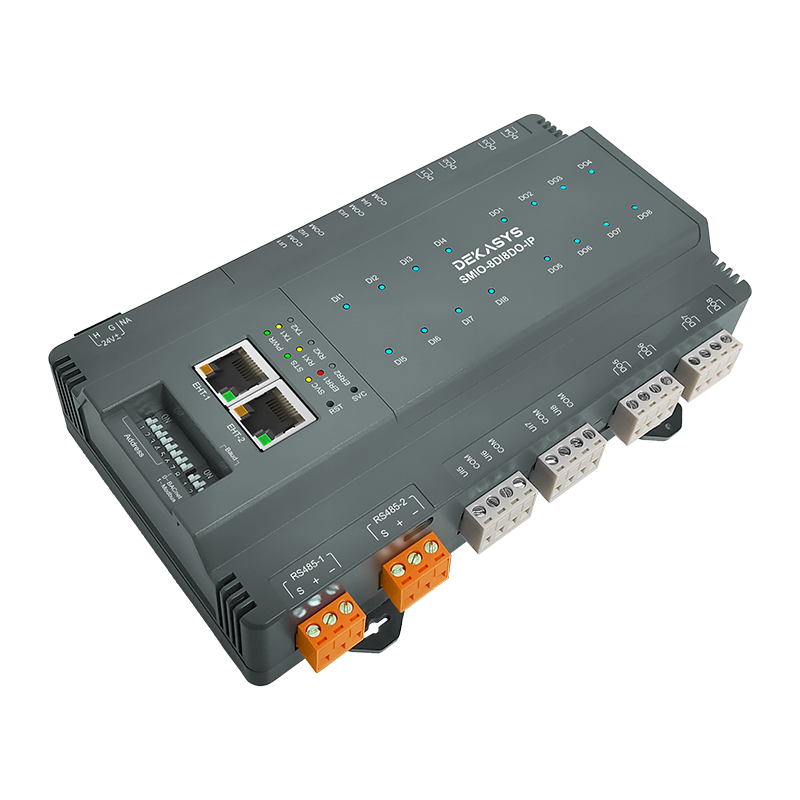

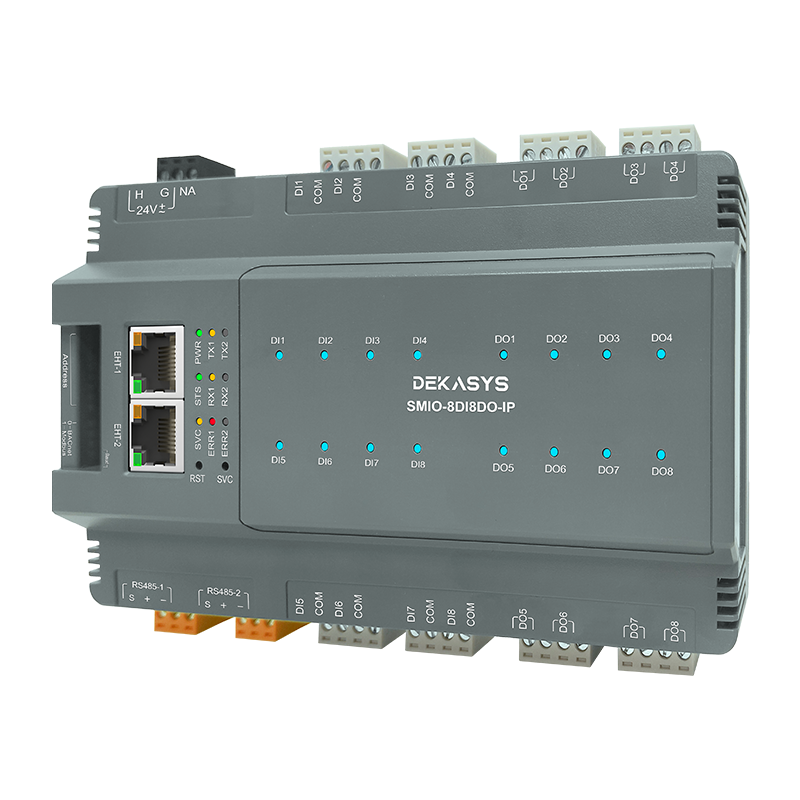

DEKASYS 16-point Remote IO module SMIO-8DI8DO-IP

★ Product Description: 16-point Remote IO module (IP version)

★ Model: SMIO-8DI8DO-IP

Designed for diverse automation applications, the SMIO-8DI8DO-IP is an IP-based I/O module with 16 base points (8DI, 8DO), including 8 digital inputs and 8 digital outputs. It supports BACnet and Modbus protocols, making it suitable for industrial, building, energy, and environmental systems. The HOA function, controlled by a slide switch, adds versatility, making it ideal for managing complex automation tasks efficiently.

RS485*2	DI8 & DO8	2 Ethernet port for daisy chain connection
Good Price-Performance	ARM Cortex 32 Bit MCU	Baud rate and address DIP switch

DEKASYS

Products Features

Standard Protocol

Supports open communication protocols (BACnet MS/TP, BACnet IP, Modbus RTU/TCP), designed for interoperability with HVAC, energy management, and industrial IoT platforms.

Online Firmware Upgradable/Configurable

Perform on-site firmware upgrades and adjustments via USB, enabling adaptation to evolving operational needs while minimizing downtime during system enhancement periods.

Simulate Output Variable Values

Select analog output types (0–10V, 0–20mA, or 4–20mA) via a slide switch and fine-tune signal ranges using an onboard trimmer, enabling rapid field adjustments without software tools.

Hardware DIP Switch Settings

Simplify installation with DIP-switch-configured addresses and baud rates, reducing commissioning time by up to 40% in complex automation networks.

DEKASYS

Device Specifications

Dimension	193.2x107x51.2mm(±0.5mm)
Casing Material	UL 94 ABS + PC
Weight	TBA
Power Supply	24V AC +20%/-15% or 24V DC ±5%
Consumption	<10W
Current Rating	1A at 24VAC/VDC
Operating Temp	32 to 131°F (0 to 55 °C)
Storage Temp	-4 to 185 °F (-20 to 85 °C)
Operating Humidity :	0% to 95% relative humidity non-condensing
IP Waterproof	IP20
Limit	ON State < 2000Ω，OFF State > 20000Ω
Type	Dry Contact，Isolated 3.7KV
Type	Relay, SPST NO, 24VAC/DC, 0.5A
Certifications	CE, FCC, BTL

DEKASYSDigital Input And Digital Output

✔ For digital signal, there are only two states, ON or OFF.

✔ When the digital signal is OFF, the RGB LED will be OFF too, when the digital signal is ON, the RGB LED will light on Blue.

DEKASYS

Colour Display Table

Below table summarize the RGB LED colour display in specific configuration and type of IO channel:

Type Of IO	Configuration	Colour
Digital Input	ON, OFF	Blue, Off
Digital Output	ON, OFF	Blue, Off

DEKASYSDigital Output Manual Override(HOA)

With Digital Output HOA function, user can manually override the current output state using the slide switch.

Slide Switch Position	Function	Description
Left	Hand/H	Digital Output is On/ Relay activated
Middle	Off/O	Digital Output is Off/Relay deactivated
Right	Auto/A	Digital Output is controlled by network command
