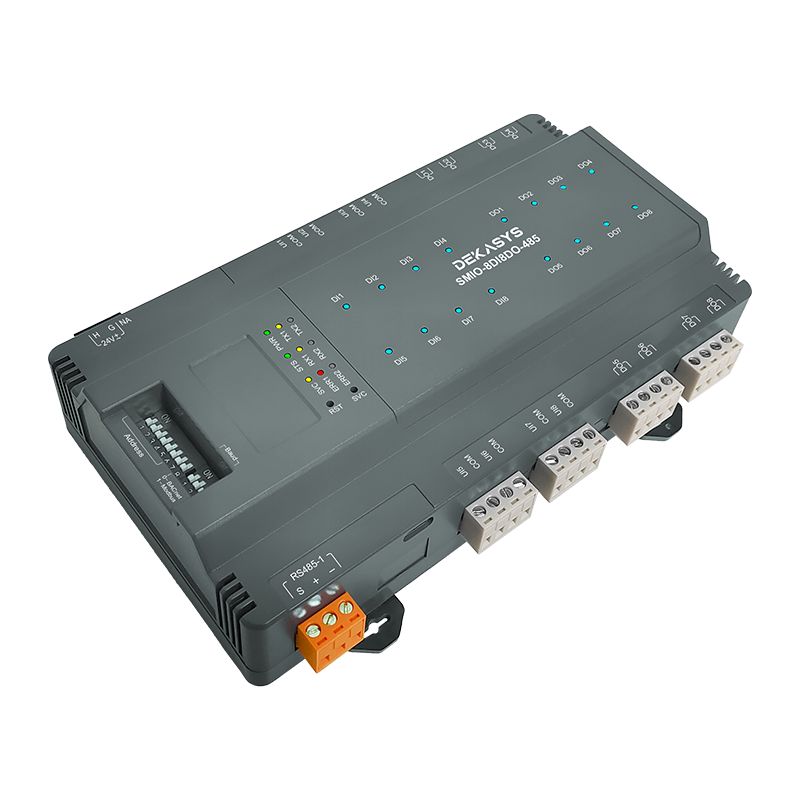

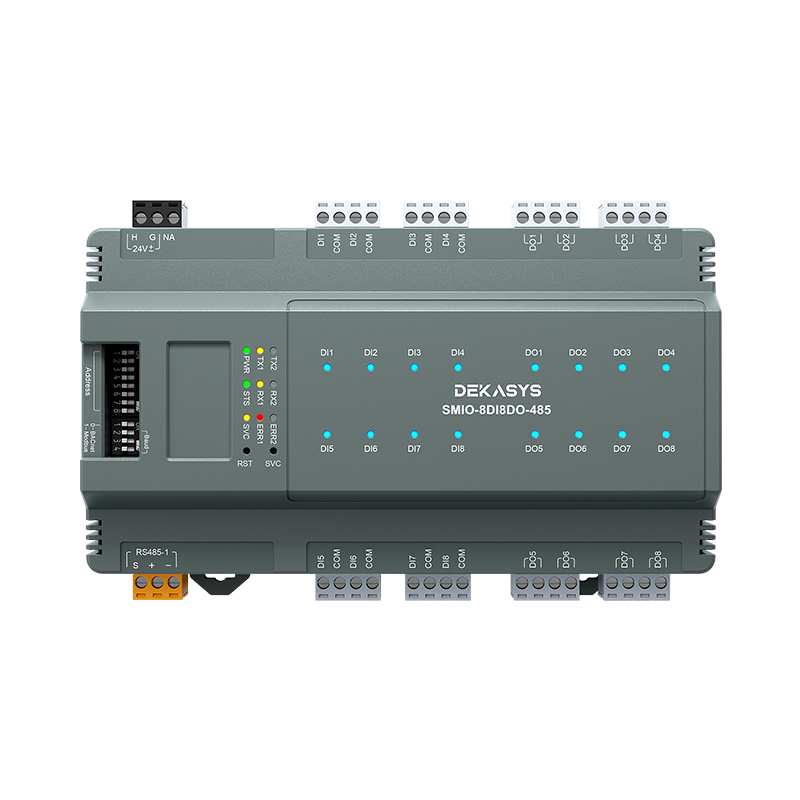

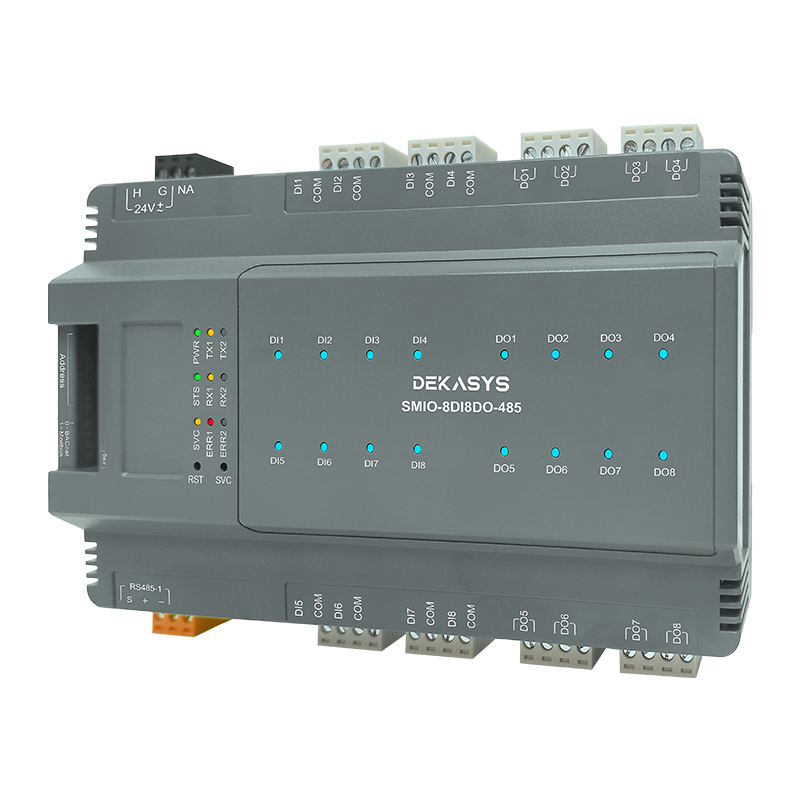

DEKASYS 16-point Remote IO module SMIO-8DI8DO-485
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity : |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Limit |
ON State < 2000Ω，OFF State > 20000Ω |
|
Type |
Dry Contact，Isolated 3.7KV |
|
Type |
Relay, SPST NO, 24VAC/DC, 0.5A |
|
Certifications |
CE, FCC, BTL |
DEKASYSDigital Input And Digital Output
✔ For digital signal, there are only two states, ON or OFF.
✔ When the digital signal is OFF, the RGB LED will be OFF too, when the digital signal is ON, the RGB LED will light on Blue.
Type Of IO |
Configuration |
Colour |
Digital Input |
ON, OFF |
Blue, Off |
Digital Output |
ON, OFF |
Blue, Off |
DEKASYSDigital Output Manual Override(HOA)
With Digital Output HOA function, user can manually override the current output state using the slide switch.
Slide Switch Position |
Function |
Description |
Left |
Hand/H |
Digital Output is On/ Relay activated |
Middle |
Off/O |
Digital Output is Off/Relay deactivated |
Right |
Auto/A |
Digital Output is controlled by network command |
