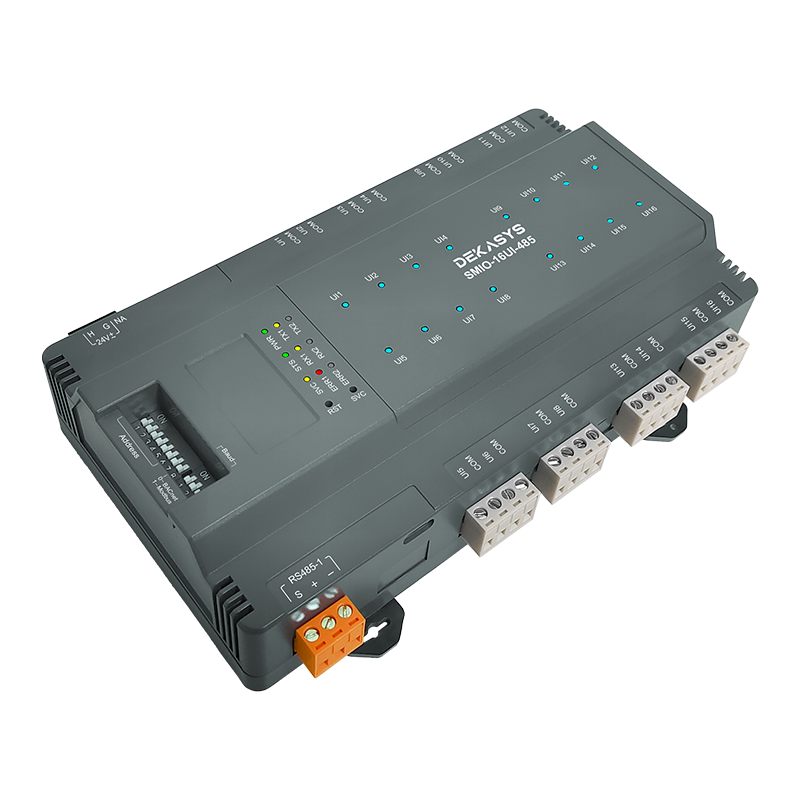

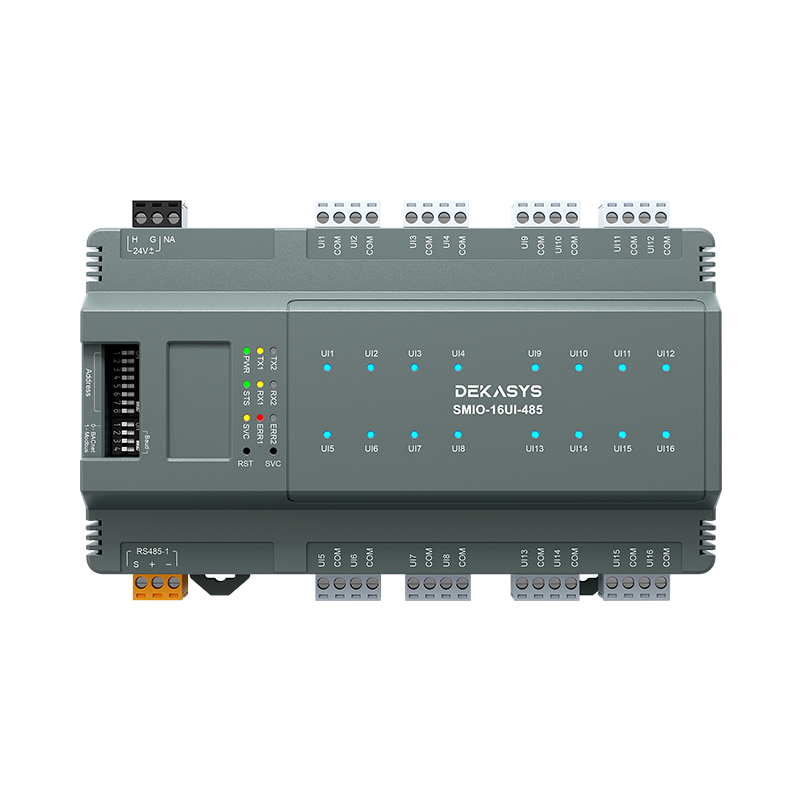

DEKASYS 16-point Remote IO module SMIO-16UI-485
Supported Protocols
The controller supports BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP, ensuring broad compatibility with building automation systems.
Firmware Upgradability
The controller firmware can be upgraded and configured via USB.
DIP Switch Setup
The DIP switch allows for fast and convenient setup of the address and baud rate.
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp. |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
12-bits with PGA |
|
|
Voltage |
0 - 10V (±0.01V), 0 - 5V (± 0.01V) |
|
Current |
4 - 20mA (±0.01mA), 0 - 20mA (±0.01mA) |
|
Resistance |
0 - 30K , 0 - 10K, 0 - 1.5K |
|
Thermister |
NTC : 10K TYPE 2/3, 3K, 20K (±0.1 ℃) |
|
Sensor |
RTD : 1K Balco, 1K Platinum (±0.2 ℃) |
|
Certifications |
CE, FCC, BTL |
-
Simple and efficient, plug and play
DEKASYS IO module is simple, easy - to - operate, and supports quick installation and configuration. Standardized interfaces and preset functions simplify device connections. Non - professionals can quickly start, reducing deployment time and cost.
-
Flexible adaptation, seamless connection
DEKASYS IO systems are modular and support various industrial protocols (BACnet, Modbus, MQTT, etc.), ensuring seamless connectivity with diverse equipment and systems, and catering to different customer needs.
-
Expand indefinitely and face the future
DEKASYS IO modules are highly scalable and can be flexibly combined and upgraded according to customer needs. They can handle single modules, large - scale systems, simple applications, and complex scenarios, continuously supporting enterprises' digital transformation.
DEKASYS' efficient and intelligent IO systems and modules provide strong support for industrial and building automation, helping enterprises move towards an intelligent future with simplicity.
