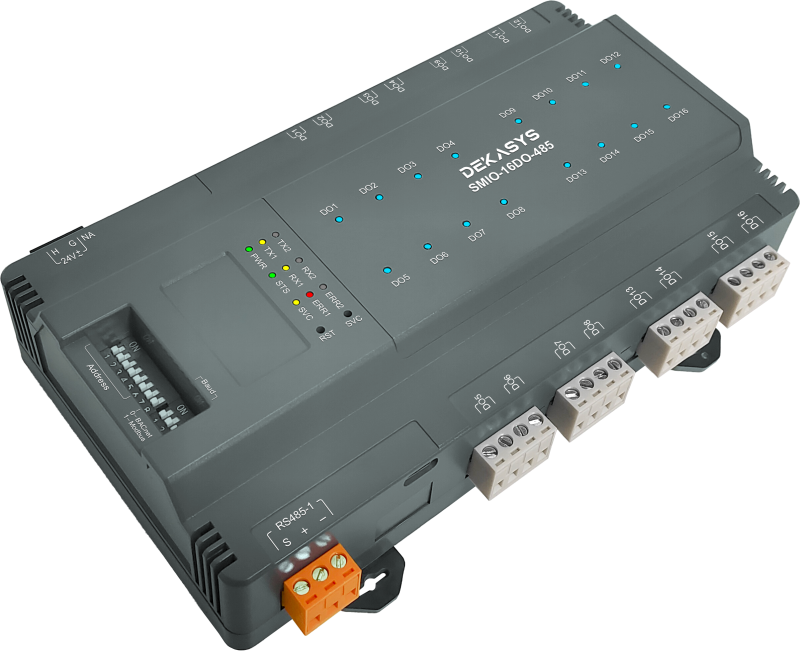

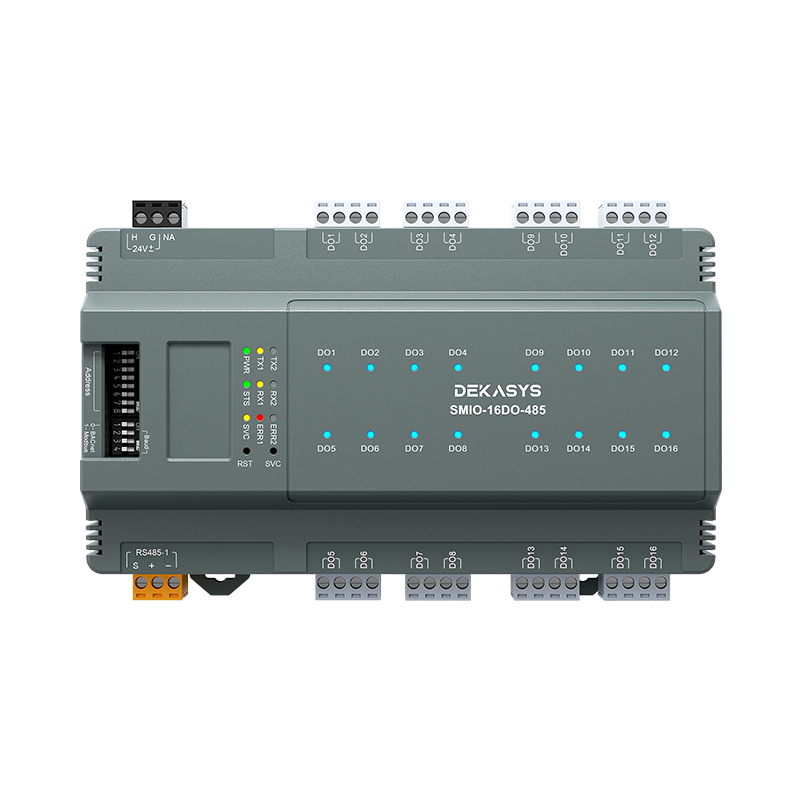

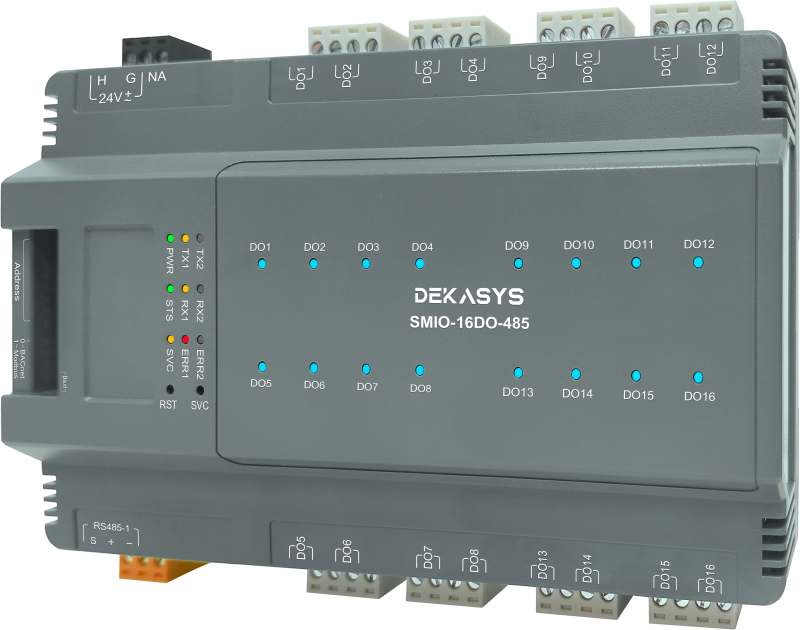

DEKASYS 16-point Remote IO module SMIO-16DO-485
Standard Protocol
It supports the open communication protocols of BACnet MSTP, BACnet IP, Modbus RTU and Modbus TCP.
Online Firmware Upgradable/Configurable
The controller can be upgraded and configured via RS485.
Hardware DIP switch Settings
The address and baud rate can be set by the DIP switch.
| Dimension | 193.4x107.1x51.7mm(±0.5mm) |
| Casing Material | UL 94 ABS + PC |
| Weight | 476±5g |
| Power Supply | 24VAC 50/60Hz +20%/-15%, or 24VDC ±5% |
| Consumption | <10W |
| Current Rating | 1A at 24VAC/VDC |
| Operating Temp | 32 to 131°F (0 to 55 °C) |
| Storage Temp | -4 to 185 °F (-20 to 85 °C) |
| Operating Humidity | 0% to 95% relative humidity non-condensing |
| IP Waterproof | IP20 |
| Type | Relay, SPST NO, 24VAC/DC, 1A |
| Certificates | CE, FCC, BTL |
-
Digital Output
For digital signal, there are only two states, ON or OFF. When the digital signal is OFF, the RGB LED will be OFF too, when the digital signal is ON, the RGB LED will light on blue.
-
Colour Display Table
The sheet below summarizes the RGB LED colour display in specific configuration and type of IO channel:
Type Of IO
Configuration
Colour
Digital Output
ON, OFF
Blue, Off
-

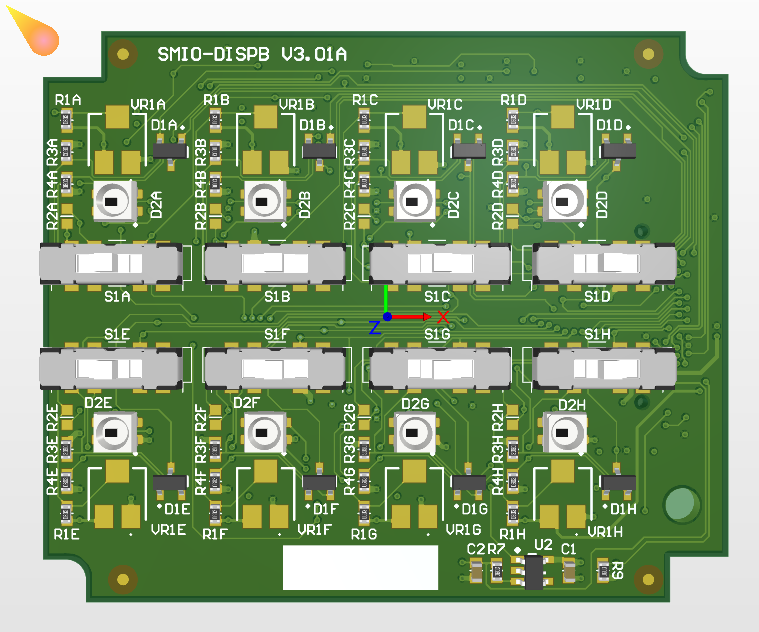

Digital Output Manual Override(HOA)
With Digital Output HOA function, user can manually override the current output state using the slide switch.
Slide Switch Position
Function
Description
Left
Hand/H
Digital Output is On/ Relay activated
Middle
Off/O
Digital Output is Off/Relay deactivated
Right
Auto/A
Digital Output is controlled by network command
