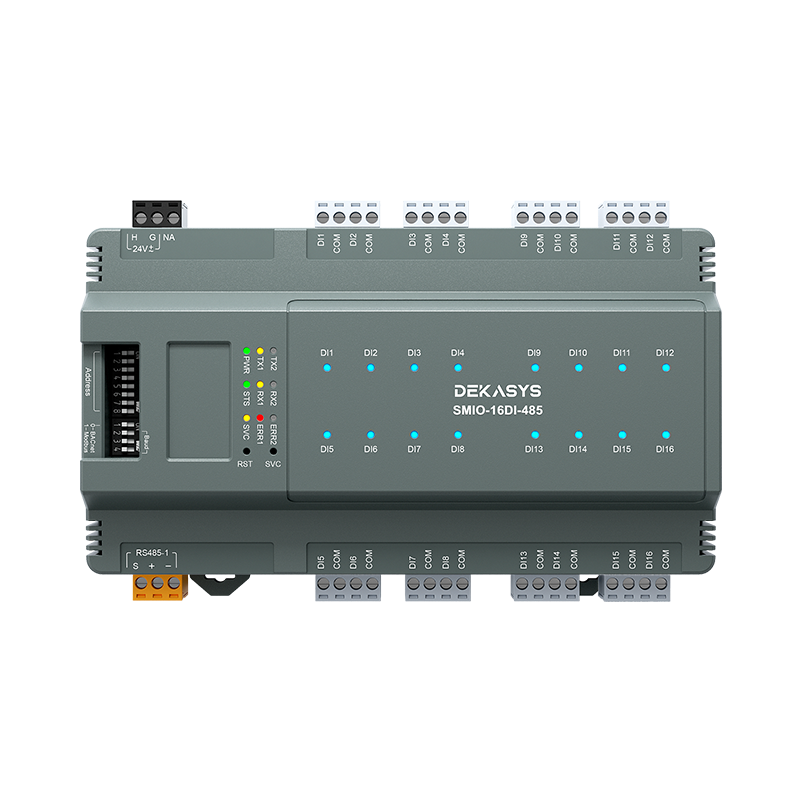

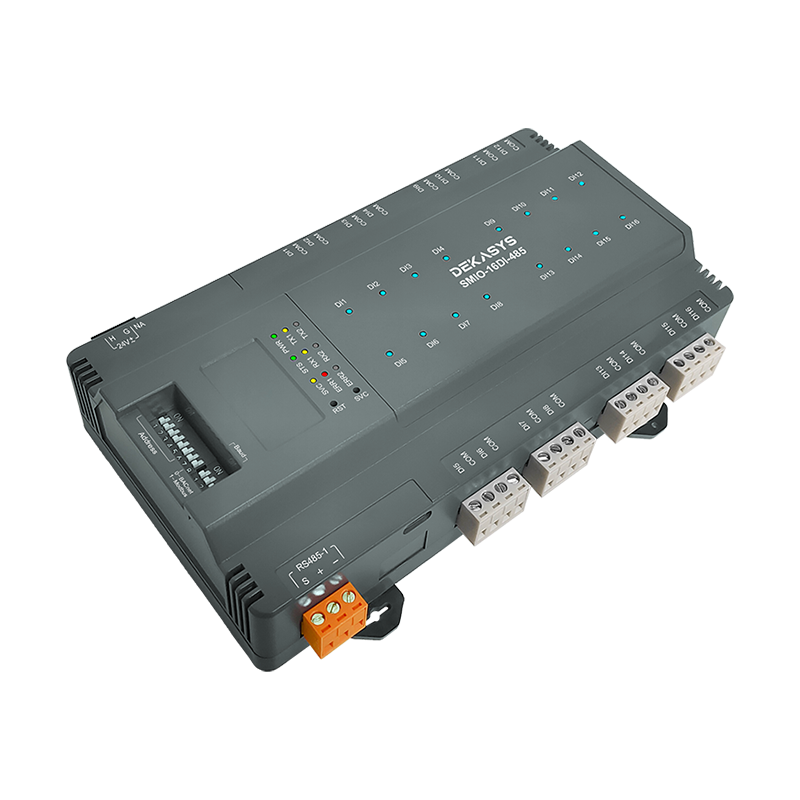

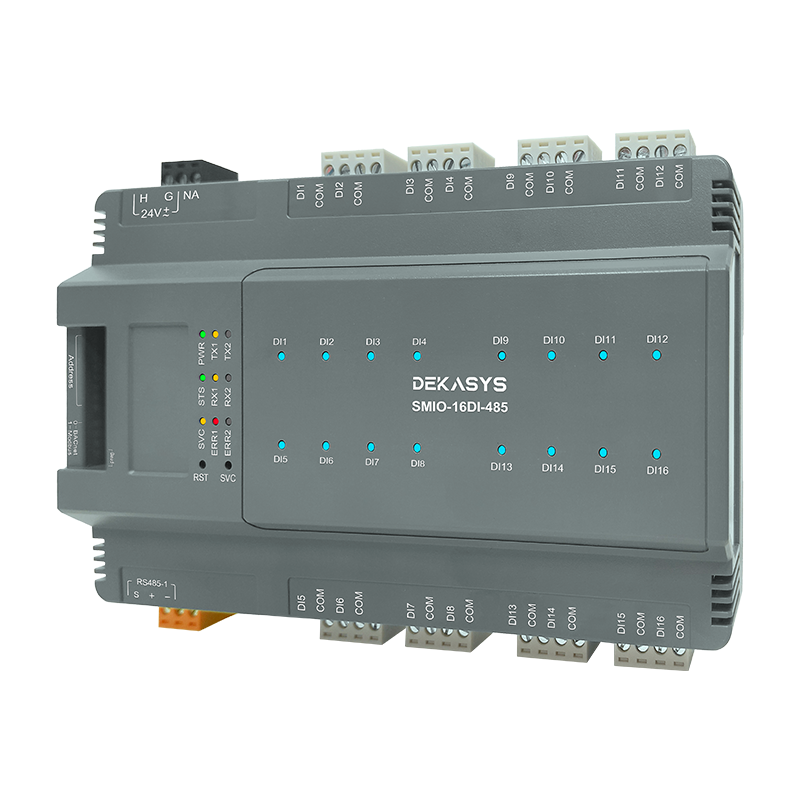

DEKASYS 16-point Remote IO module SMIO-16DI-485
Protocol Support
The device works with BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP protocols.
Firmware Upgradability
The controller firmware can be upgraded and configured via USB.
Hardware Configuration
The address and baud rate can be easily set using the DIP switch for a quick setup.
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity : |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Limit |
ON State < 2000Ω，OFF State > 20000Ω |
|
Type |
Dry Contact，Isolated 3.7KV |
|
Certifications |
CE, FCC, BTL |
-
Simple and efficient, plug and play
DEKASYS IO module is simple in design, intuitive in operation, and supports quick installation and configuration. Standardized interfaces and preset functions make it easy to connect devices, and even users with no professional background can quickly get started, significantly reducing deployment time and cost.
-
Flexible adaptation, seamless connection
DEKASYS IO systems are modular in design and support a variety of industrial protocols (such as BACnet, Modbus, MQTT, etc.), enabling seamless connection with all types of equipment and systems, all perfectly adapted to meet the diverse needs of different customers.
-
Expand indefinitely and face the future
DEKASYS IO modules are highly scalable and can be flexibly combined and upgraded according to customer needs. From single modules to large-scale systems, from simple applications to complex scenarios, DEKASYS is able to handle it easily, providing continuous support for the digital transformation of enterprises.DEKASYS' efficient and intelligent IO systems and modules provide strong support for industrial and building automation, helping enterprises move towards an intelligent future with simplicity.
