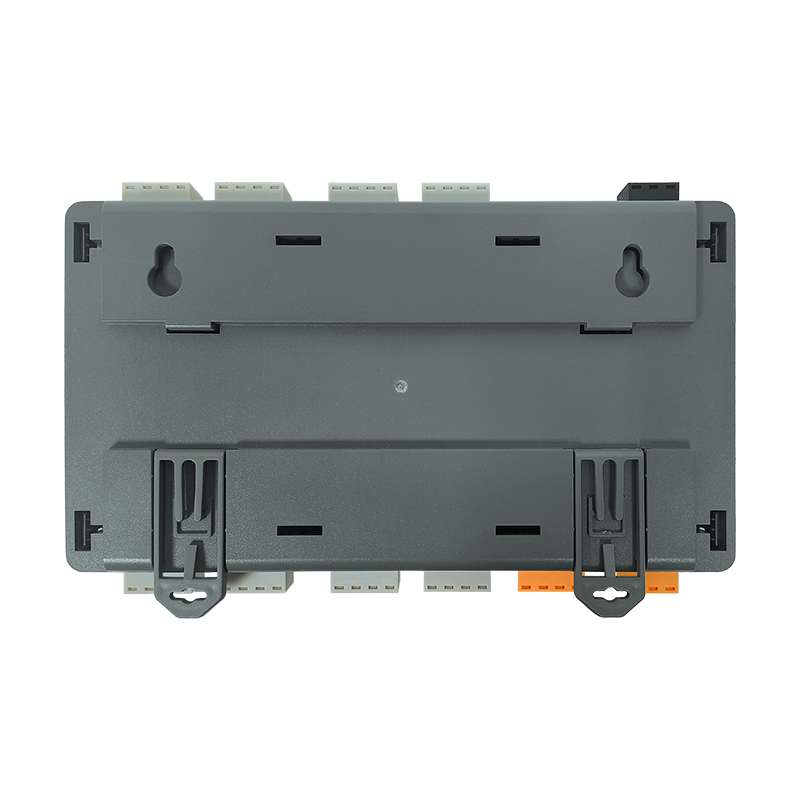

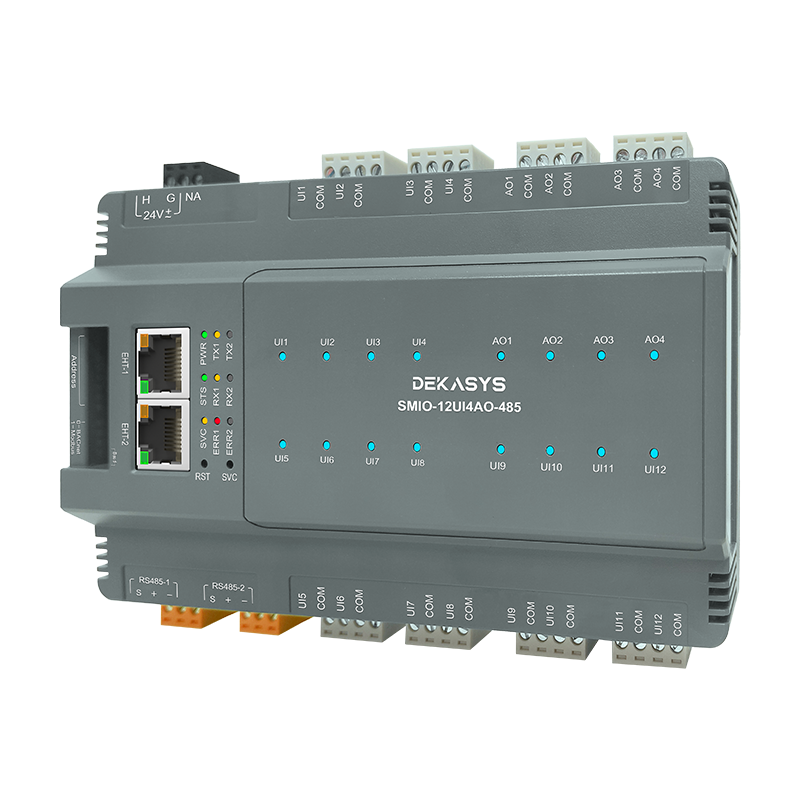

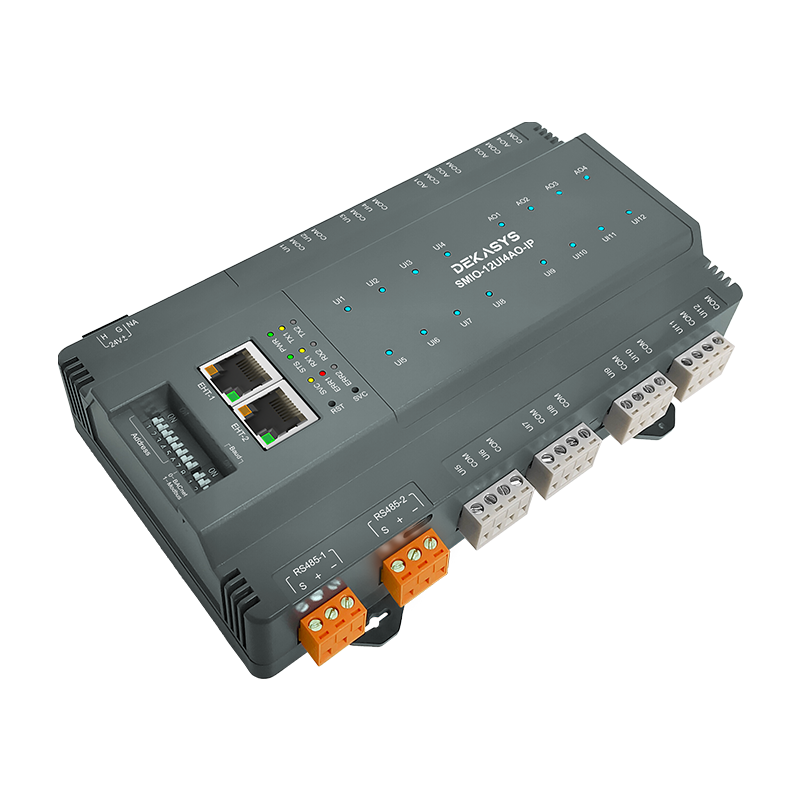

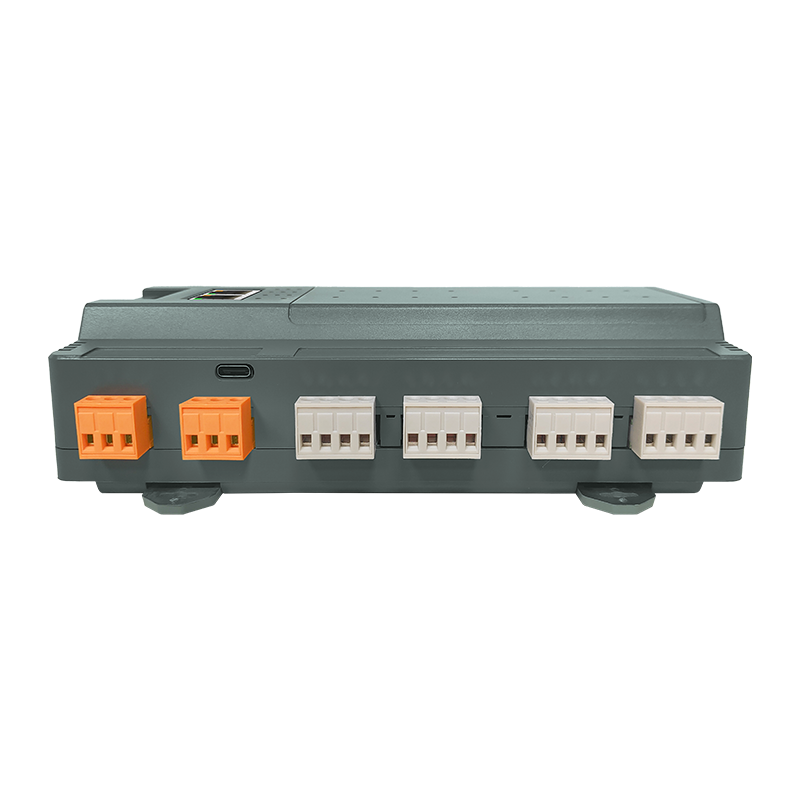

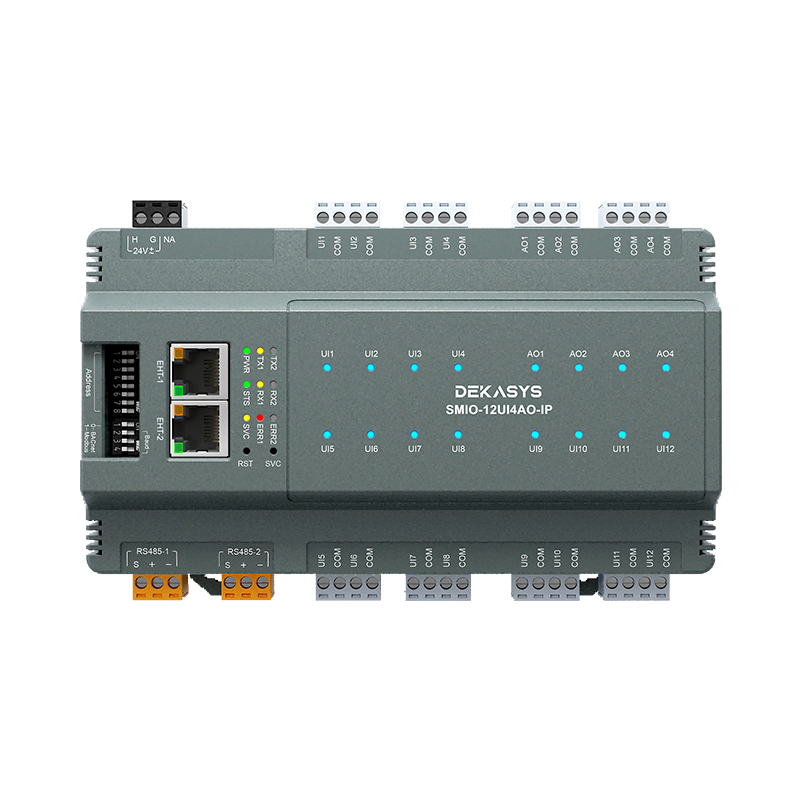

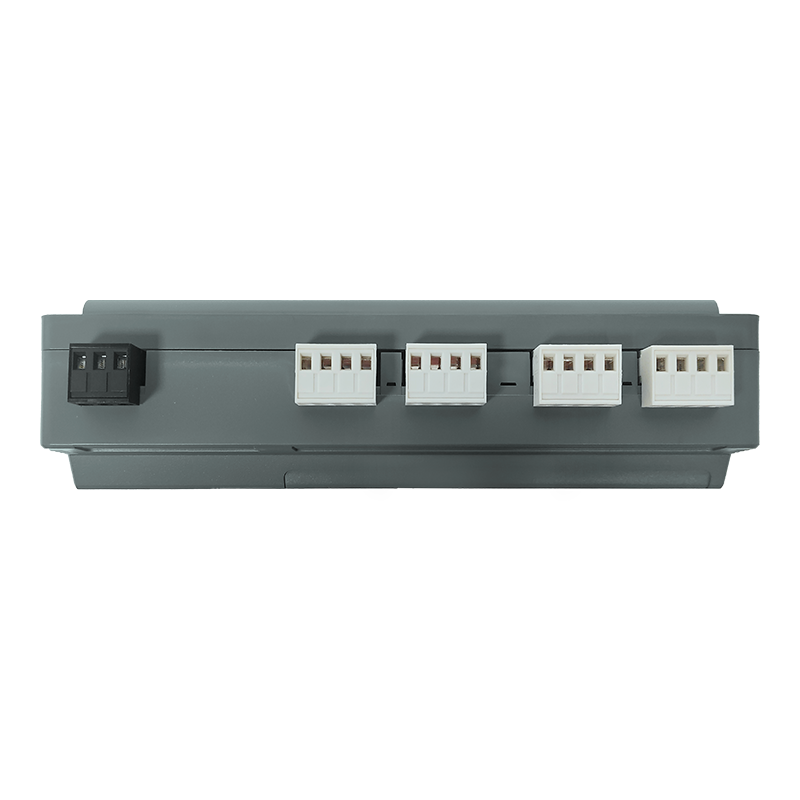

DEKASYS 16-point Remote IO module SMIO-12UI4AO-IP
|
RS485*2 |
UI*12 & AO*4 |
2 Ethernet port for daisy chain connection |
|
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Standard Protocol Compatibility
The controller supports BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP protocols, ensuring seamless integration with most building automation applications.
Online Firmware Configuration
The controller can be upgraded and configured via USB.
Manual Override Analog Output Values
The analog output type is selectable via a slide switch, and the amplitude can be adjusted using a trimmer for ranges of 0 V–10 V, 0 mA–20 mA, or 4 mA–20 mA.
Hardware Setup
The address and baud rate can be set using the DIP switch, allowing for fast and convenient installation.
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp. |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
12-bits with PGA |
|
|
Voltage |
0 - 10V (±0.01V), 0 - 5V (± 0.01V) |
|
Curren |
4 - 20mA (±0.01mA), 0 - 20mA (±0.01mA) |
|
Resistance |
0 - 30K , 0 - 10K, 0 - 1.5K |
|
Thermister |
NTC : 10K TYPE 2/3, 3K, 20K (±0.1 ℃) |
|
Sensor |
RTD : 1K Balco, 1K Platinum (±0.2 ℃) |
|
12-bits DAC |
|
|
Current |
0 - 20mA, 4 - 20mA (Max load resistance, 800Ω) |
|
Voltage |
0 - 10V |
|
Certifications |
CE, FCC, BTL |
-
Analog Output Channel
Analog output can be either voltage output or current output.
The RGB LED colour will change from a cool colour of Blue, through Green and then bright Yellow showing that the analog output amplitude in the increasing order. -
Analog Input Channel
Analog input can be either voltage input, current input or resistive input.
The RGB LED colour will change from a cool colour of Blue, through Green and then bright Yellow showing that the analog input amplitude in the increasing order. When the analog input channel is configured as resistive input, and when the terminal is not terminated with any resistive load, or the wire is broken, the analog input channel detects a very high resistance, and will light up the RGB LED with pure RED colour signifying the analog channel is in error mode. -
Analog Input Channel And Analog Output
Below table summarize the RGB LED colour display in specific configuration and type of IO channel:
Type Of IO
Configuration
Colour
Analog Output
0 to 10V or 0 to 20mA
Blue, through Green and then bright Yellow
4 to 20mA
< 4 mA in error state, Red.
Blue, through Green and then bright Yellow
Analog Input
0 to 10V or 0 to 20mA
Blue, through Green and then bright Yellow
4 to 20mA
< 4 mA in error state, Red.
Blue, through Green and then bright Yellow
0 Ohm to 20k Ohm
Blue, through Green and then bright Yellow

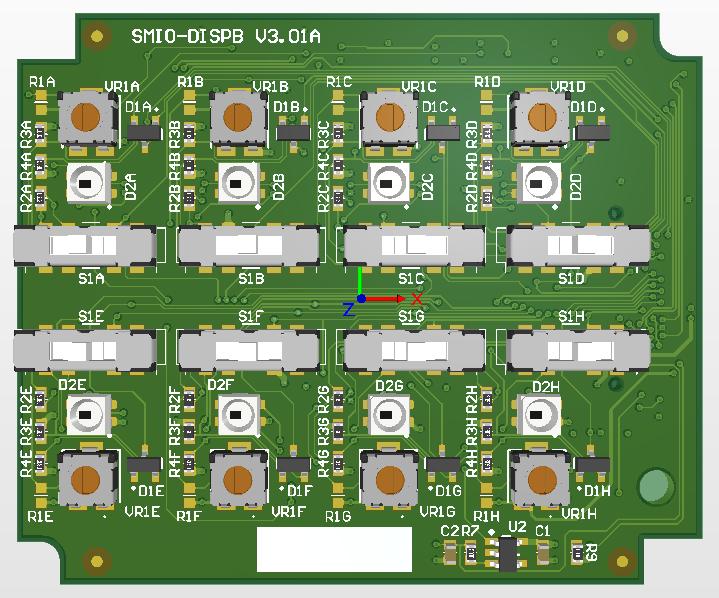

DEKASYSAnalog Output Manual Override
With Analog Output Manual Override, user can manually override the current output state using the slide switch and the trimmer.
|
Slide Switch Position |
Mode |
Description |
|
Left |
Voltage Mode |
Analog output is in Voltage mode, turning the trimmer adjust the output voltage. |
|
Middle |
Current Mode |
Analog output is in Current mode, turning the trimmer adjust the output current. |
|
Right |
Auto/A |
Analog Output is controlled by network command. |
The trimmer is increasing when turning clock wise and decreasing when turning anti-clock wise.
-
Wide coverage, multiple scenarios
DEKASYS IO systems are widely used in industrial automation, building automation, energy management, transportation systems, environmental monitoring and other fields. Whether in high-precision electronics manufacturing or energy management in complex environments, DEKASYS provides stable and efficient support.
-
Intelligent diagnosis, efficient operation and maintenance
DEKASYS IO module has intelligent diagnostic function, which can monitor equipment status in real time, automatically identify faults and issue early warnings. This not only reduces equipment downtime, but also reduces maintenance costs, ensuring continuity and stability in the production process.
-
High reliability, stable operation
DEKASYS IO modules are industrial-grade designed and subjected to rigorous quality and reliability testing to operate stably in harsh industrial environments. Its redundant design further improves system reliability and ensures uninterrupted operation of critical equipment.
